A Guided Solution to Immediate Extract Immediate Placement in the Aesthetic Zone

Case History

The patient is a 53 year old female with no history of medical complications or medications. Tooth #9 was compromised and was planned for an extraction and immediate implant placement.

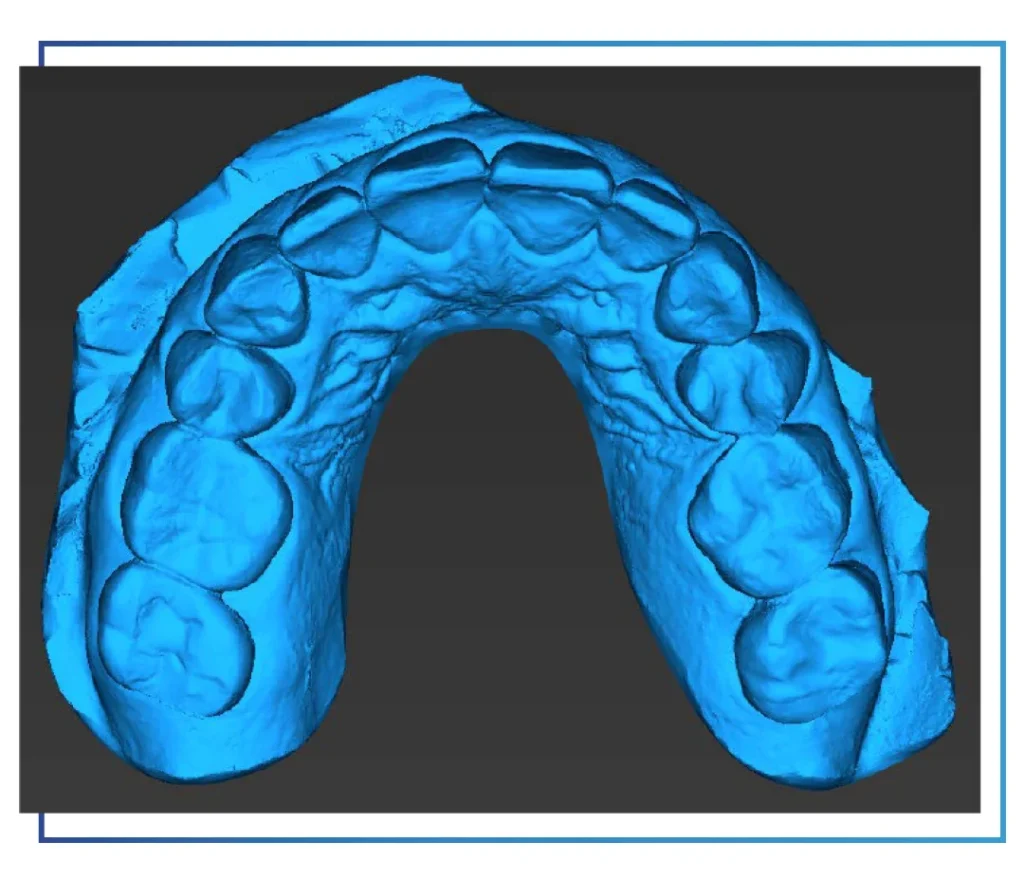

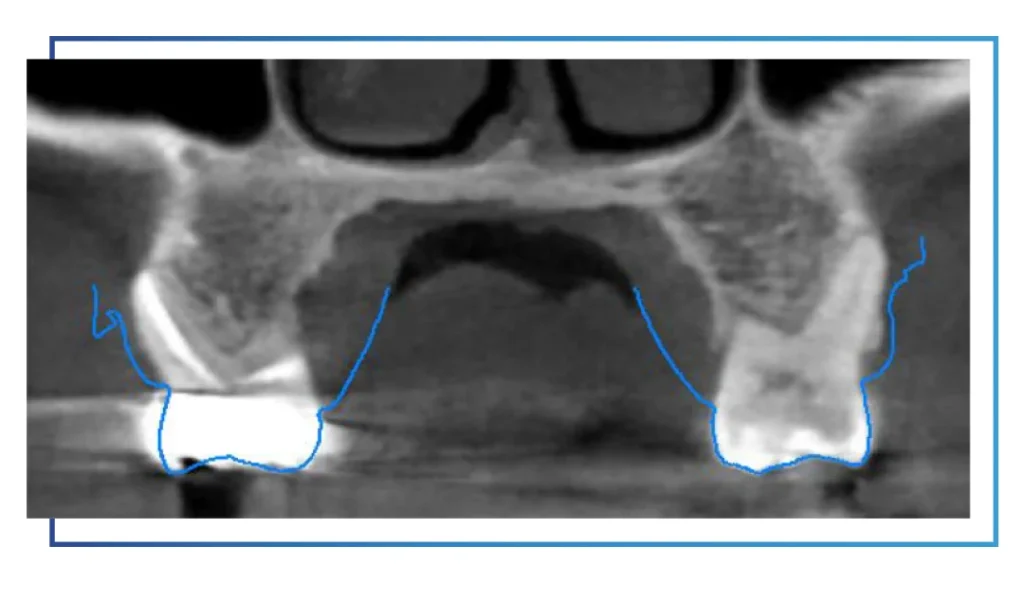

Capturing the Digital Information

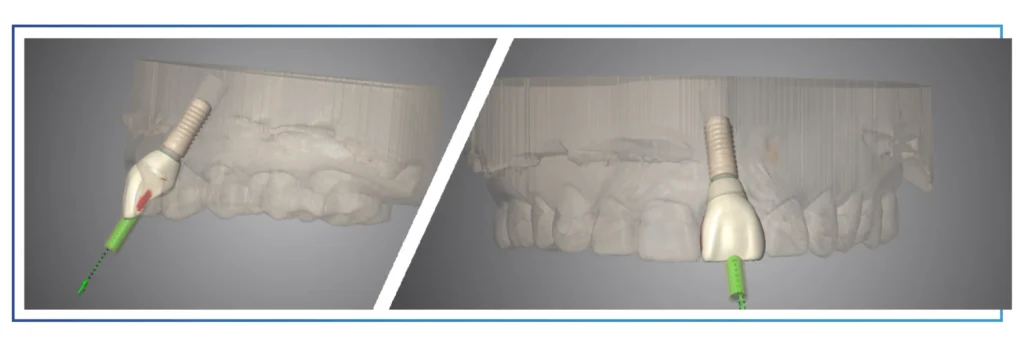

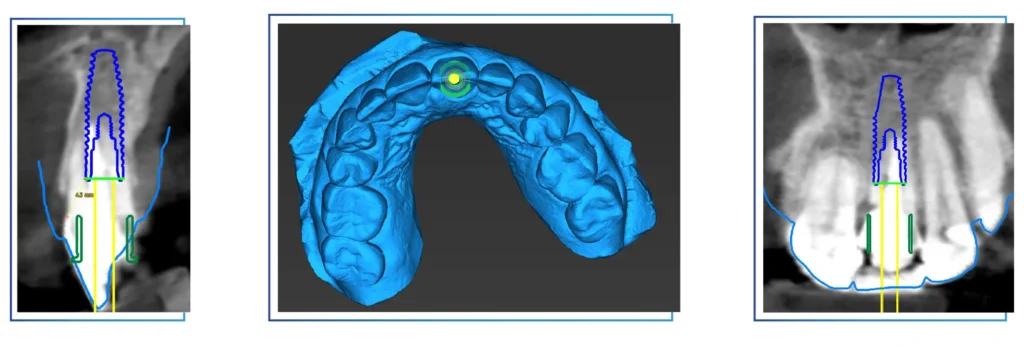

Virtual Implant Treatment Planning

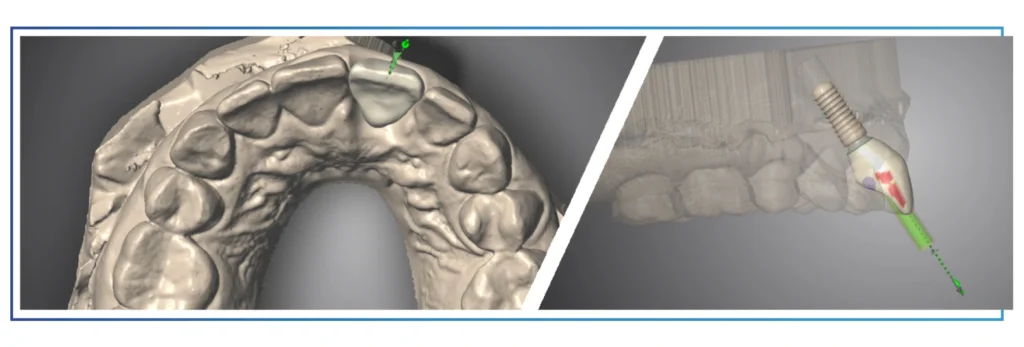

Provisional Design

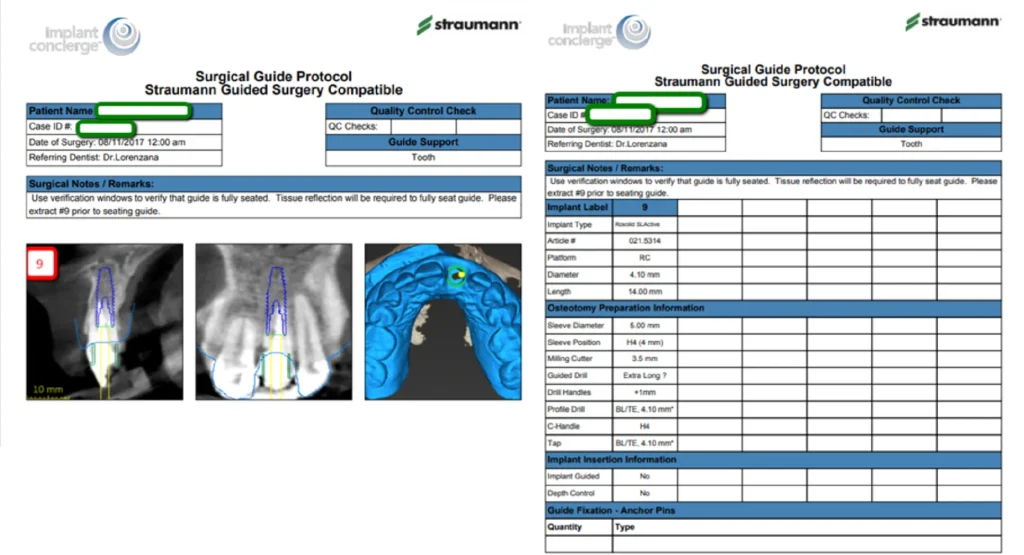

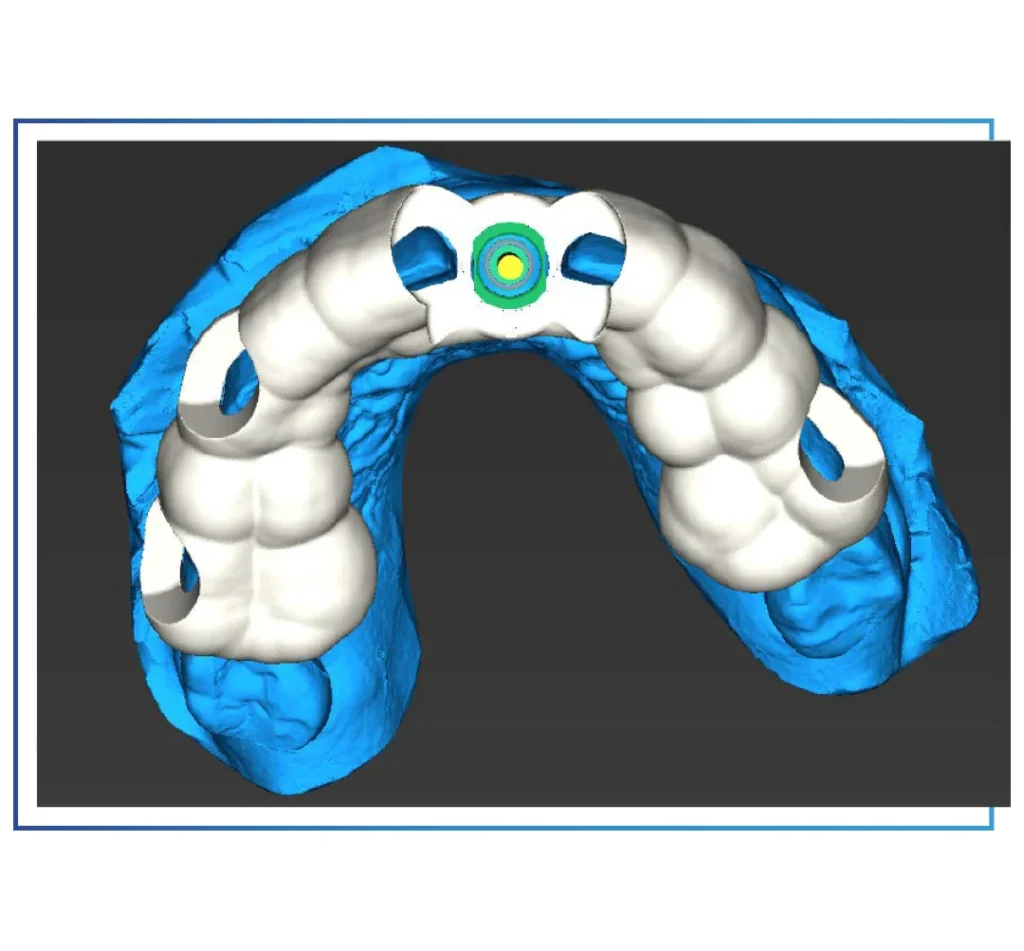

Surgical Guide

3D Printed Surgical Guides

Implant Delivery The Straumann Guided Surgical Kit allowed Dr. Lorenzana to complete the osteotomy and place the implant through the surgical guide to ensure precise trajectory, depth and timing.

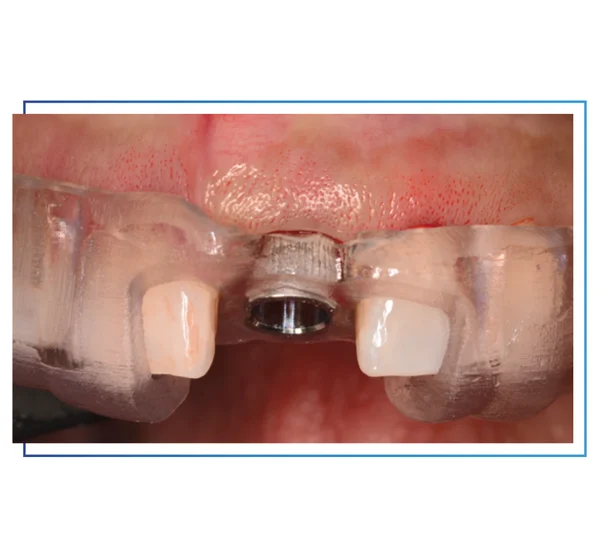

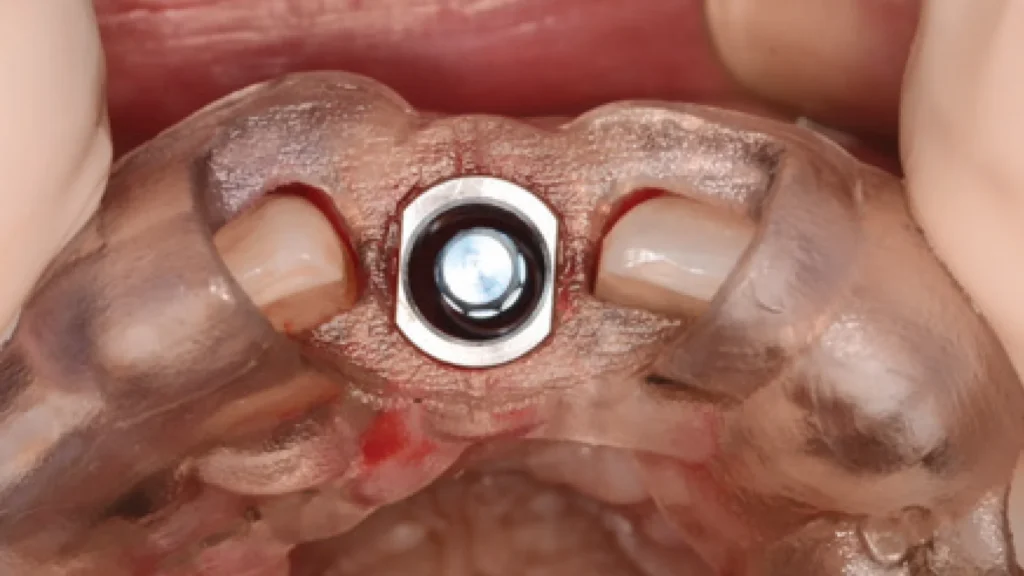

Tooth Borne Surgical Guide Verification windows verified the surgical guide was fully seated.

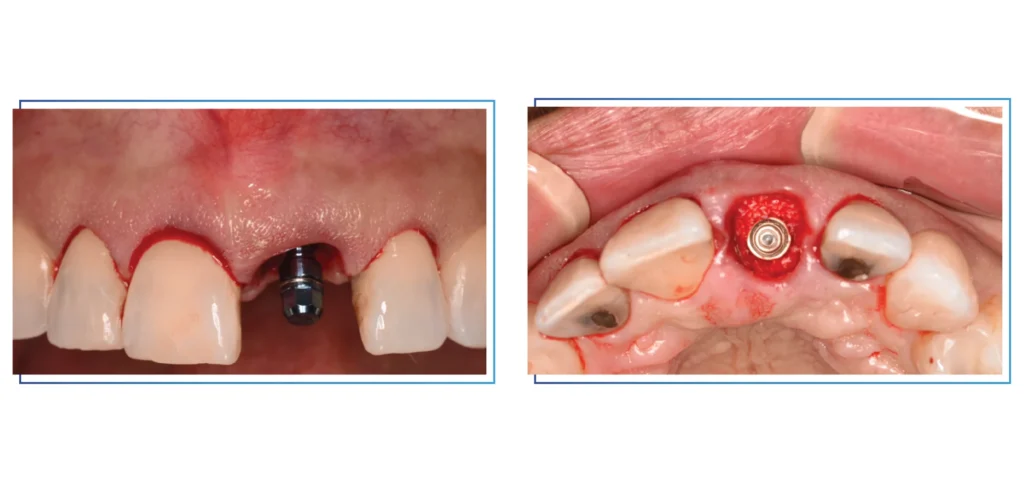

Post Operative Results

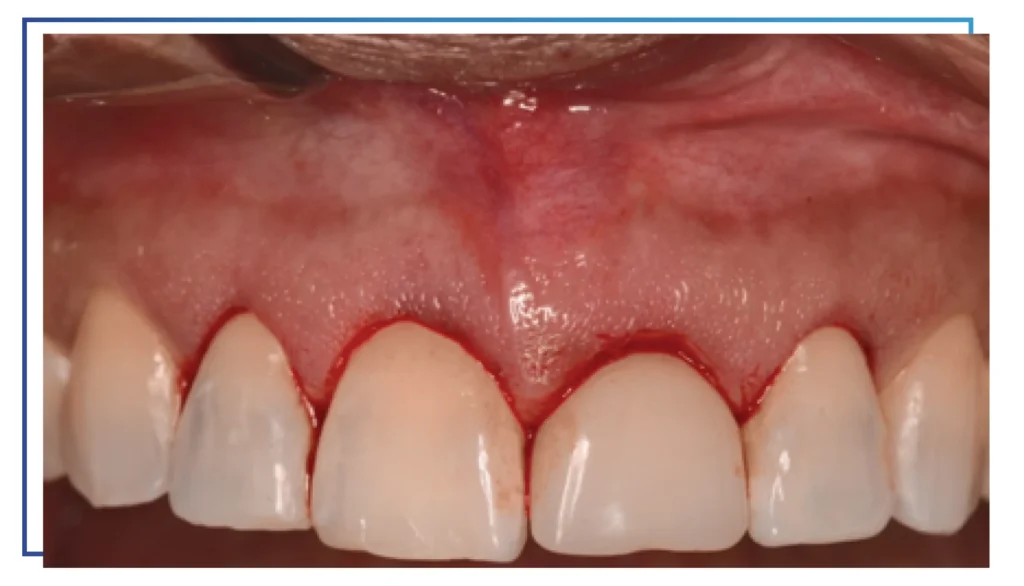

Post-operative photo displaying the completed delivery of the Surgery-Ready Screw-Retained PMMA Provisional, shade A1.

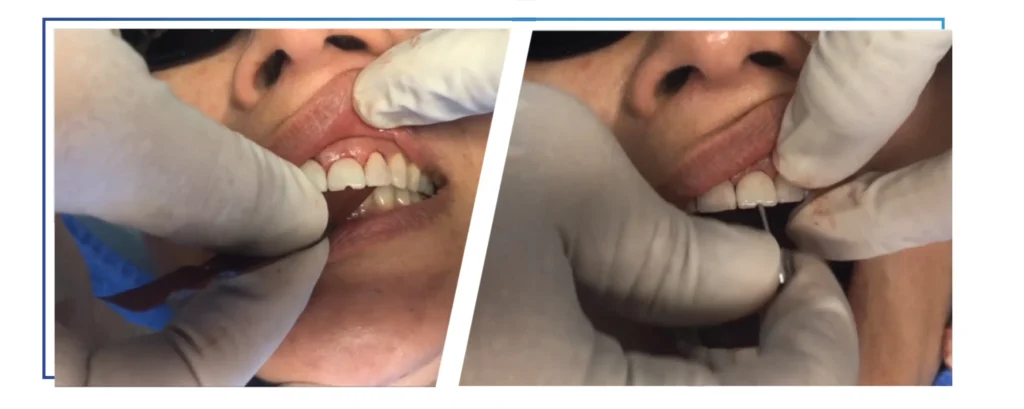

Delivery of the Surgery-Ready Screw-retained PMMA provisional and contact evaluation.

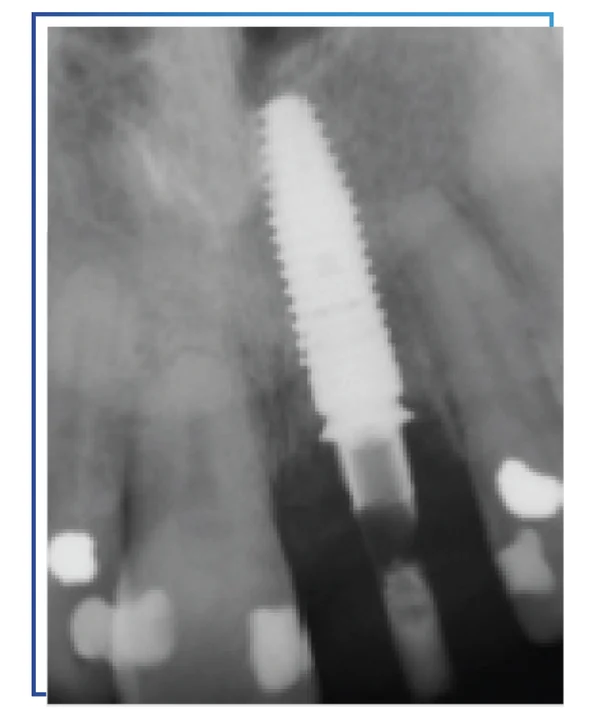

The post-operative PA verified the final position of the 4.1 x 14mm Straumann Roxolid SLActive implant. Also pictured is the Straumann Variobase engaging abutment.

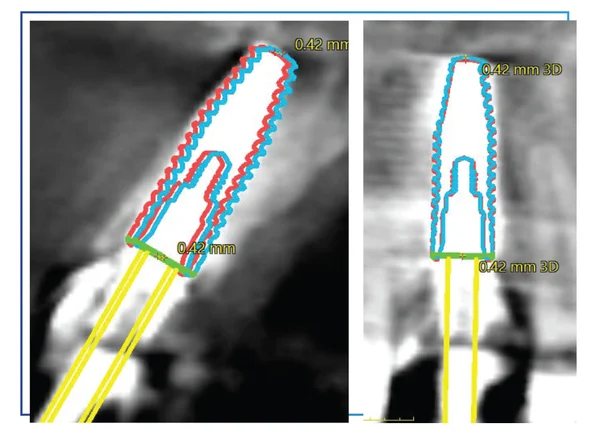

A post-op CBCT scan (red implant) was captured and overlayed with the pre-op CBCT scan (blue implant) to confirm the final implant placement. A 0.4 mm divergence was observed indicating an extremely accurate placement of the implant in comparison to the digital treatment plan.
